"FINAL" Mesurements
Thin Blue Line Array
Revised 24 APR 2003
Outdoors, Mic on tweeter center
Cabinets damped & sealed
Distance: 2.7meters
All SPL taken at the same position

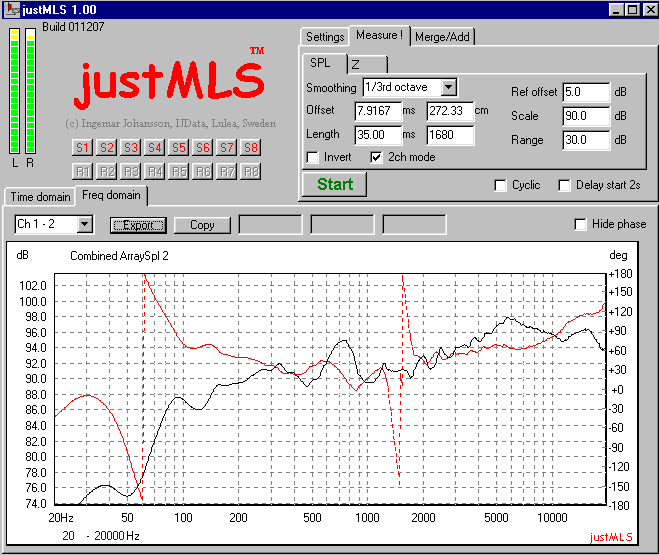

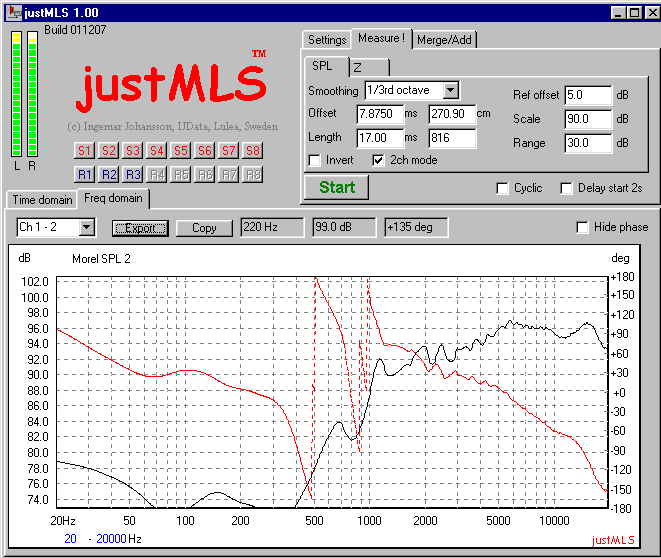

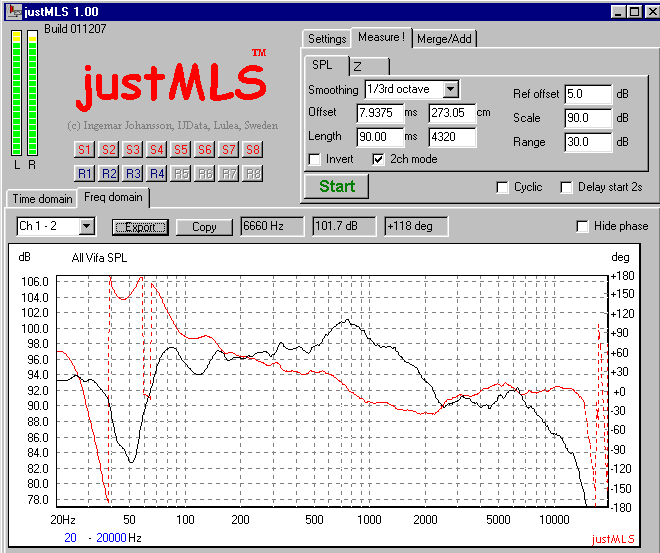

(Level in Black, Phase in Red)

Decibel Scale is not corrected for distance

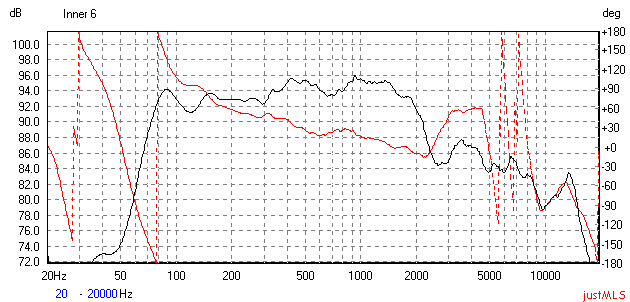

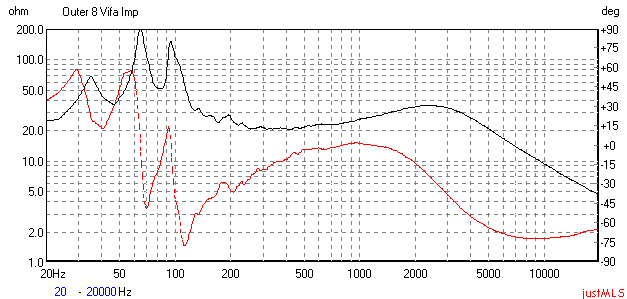

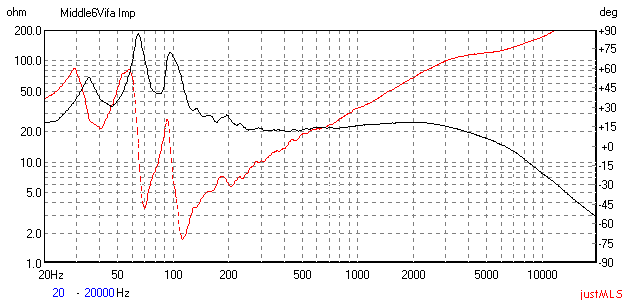

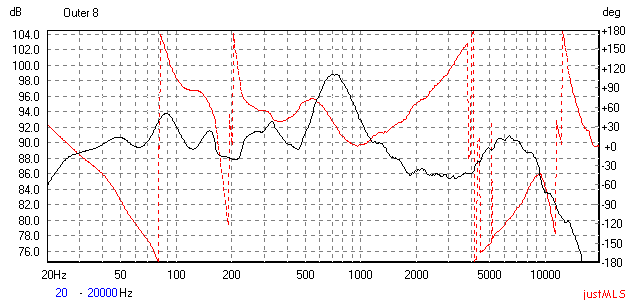

Separating the middle six and outer eight drivers
