Measurements for Cryolite Design

Taken outdoors, about 1.28 meters from baffle (lowers DB scale) about 1 meter off ground

Black is frequency, Red is Phase

Note: long gate window picks up ground effects

Dayton RS 180 (1/6 smoothing)



BG NEO3PDR (1/12 Smoothing, 30 mfd cap)

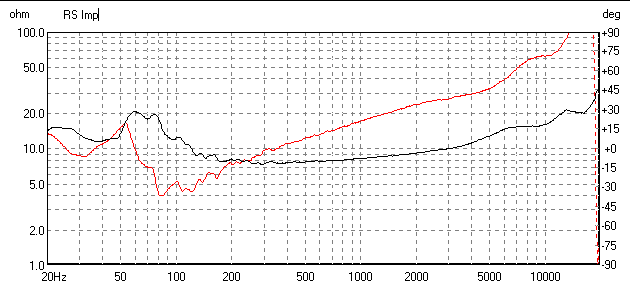

RS Impedance



Neo Impedance
